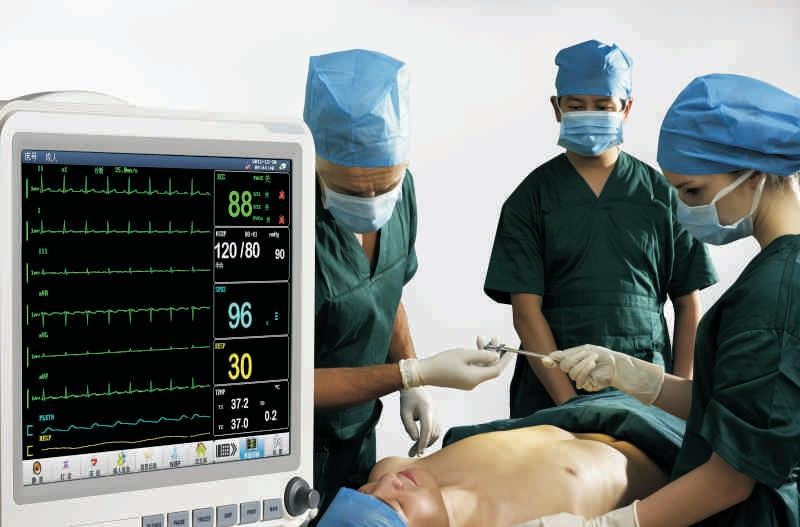

Patient Monitor

Features

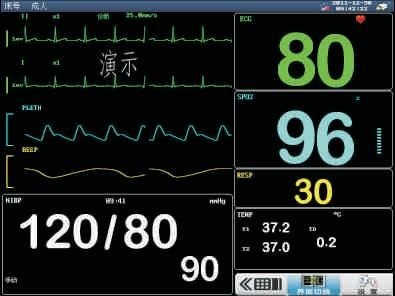

15" Colur TFT Display, led backlight

Operating Mode Selection: Neonatal/Pediatric/Adult

Visual and Audio alarms, adjustable

Patient management, Name, Age and Id

Network with Central Station Software, Built-in removable and rechargeable lithium battery, easy operating UI with both Keypad menu

Powerful data storage and managment, Trend graph, Trend table, etc

Arrythmia analysis and S-T segment analysis

Compatible to Neonatal, Pediatric, Adult Patients

ECG

• Number of Leads 3 or 5 leads
• Lead View
• User Slectable:I,II,III,aVR,aVL,aVF,V(5 Lead)
• ;I,II or III(3 lead)
• Gain Slection x1/4,x1/2,x1 and x2
• Frequency Response
• Diagnostic:0.05 to 90HZ
• Monitor:0.5 to 35 HZ
• Surgery:1-15HZ
• Calibration Signa 1 (mV p-p), Accuracy：±5%
• ECG Signal Range ±8 m V ( Vp-p )

Pulse Oxemetry

• Range 0 to 100%
• Resolution 1%
• Accuracy
• 70% to 99% range ±2%
• 1% to 69%range ±5%
• Method Dual wavelength LED

NIBP

• Technique Oscillometric during inflation
• Range Adult：40-270mmHg
• Pediatric：40-240mmHg
• Neonate：10 -150mmHg
• Measurment cycle <40 sec,typical
• Cycles(Selectable) 2,3,5,10,15,30min 1,2,4hr
• STAT model 5 minutes of continuous reading
• Max Allowable Cuff Presure
• Adult： 300 mmHg
• Pediatric：240mmHg
• Neonate：150 mmHg
• Resolution 1mmHg
• Transducer Accurancy ±2mmHg or±2% of reading

Heart(Pulse) Rate

• Range Adult 15-300 bpm
• Pediatric 15-350 bpm
• Accurancy ±2bpm or ±3% whichever is greate

Respiration Rate

• Rate: Adult: 0 ~ 120 rpm
• Neo/Ped 0 ~ 150 rpm
• Resolution 1rpm
• Accuracy ± 2 breath/min

Trends Memory

• 96 hr at 30 second intervals for a NIBP
• reading every 5 mintues
• Display trabular;graphical

Power Requirement Voltage AC100-240V,50HZ

• Power Consumption 8Watts,typical
• Battery 1 sealed lithium battery
• Battery Life 8hour typical
• Recharge time 4.5 hours

Environment

• Operating Temperature 59°–95°F - 15°C–35 °C
• Storage Temperature 23°–122°F - 5°C–50 °C
• Humidity
